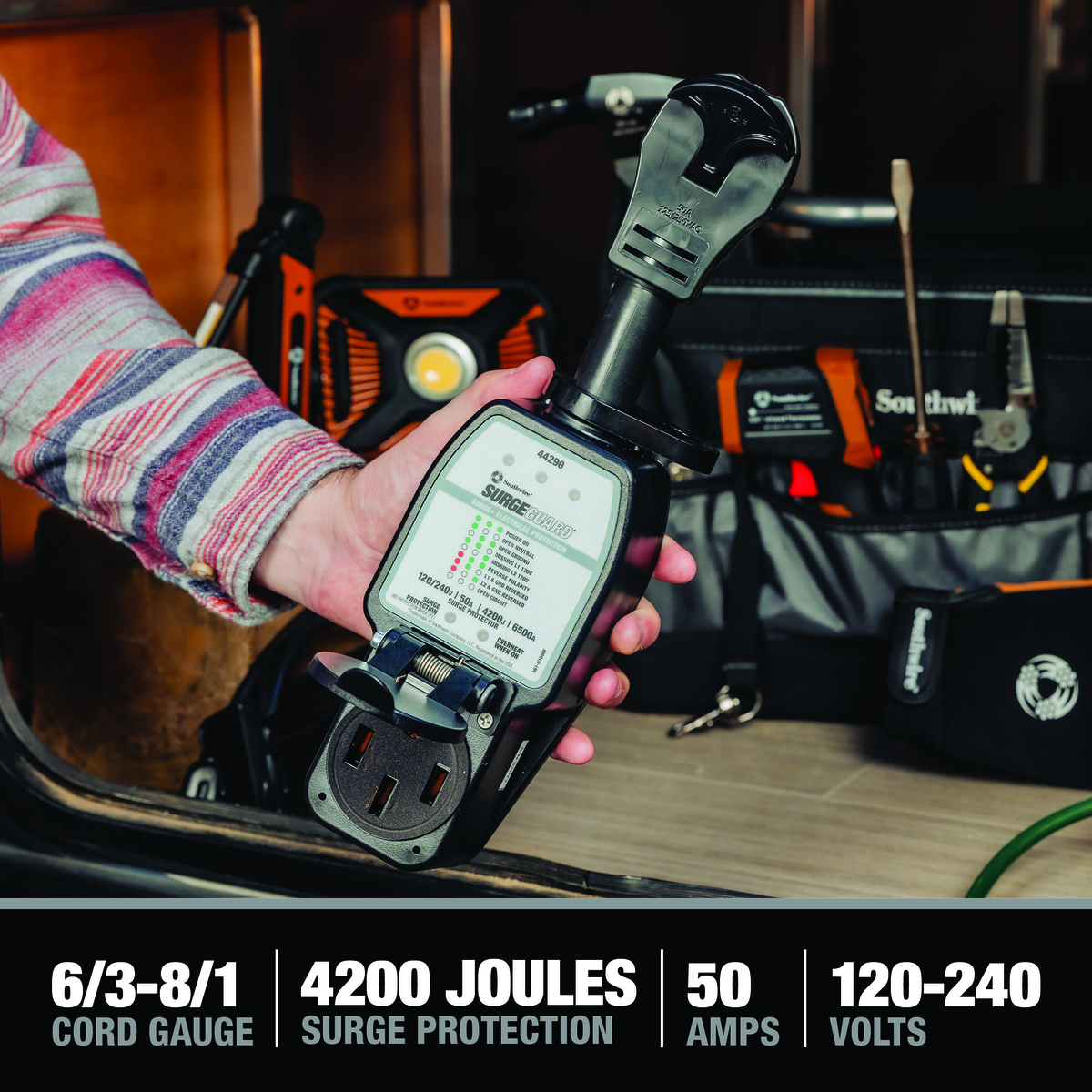

Southwire Surge Guard 44290 50 Amp RV Surge Protector provides 4,200 joules of surge protection with enhanced campground power diagnostics for 120/240-volt, 50-amp RV electrical systems.
Its easy-to-read LED fault chart indicates open neutral, open ground, reverse polarity, open circuit or no power, missing voltage on either 50-amp leg, surge-protection status, and overheating at the plug or receptacle.
Need help confirming compatibility? Request a quote and provide your RV’s year, make, model, and shore-power connection.
Confirm Your RV Uses 50 AMP Power
For RVs with 50 AMP (4-prong) power
You’re on the right product if:
✔ Your RV uses a 50 AMP plug
✔ You run multiple appliances (AC, microwave, etc.)
✔ You own a larger RV, fifth wheel, or toy hauler
Description

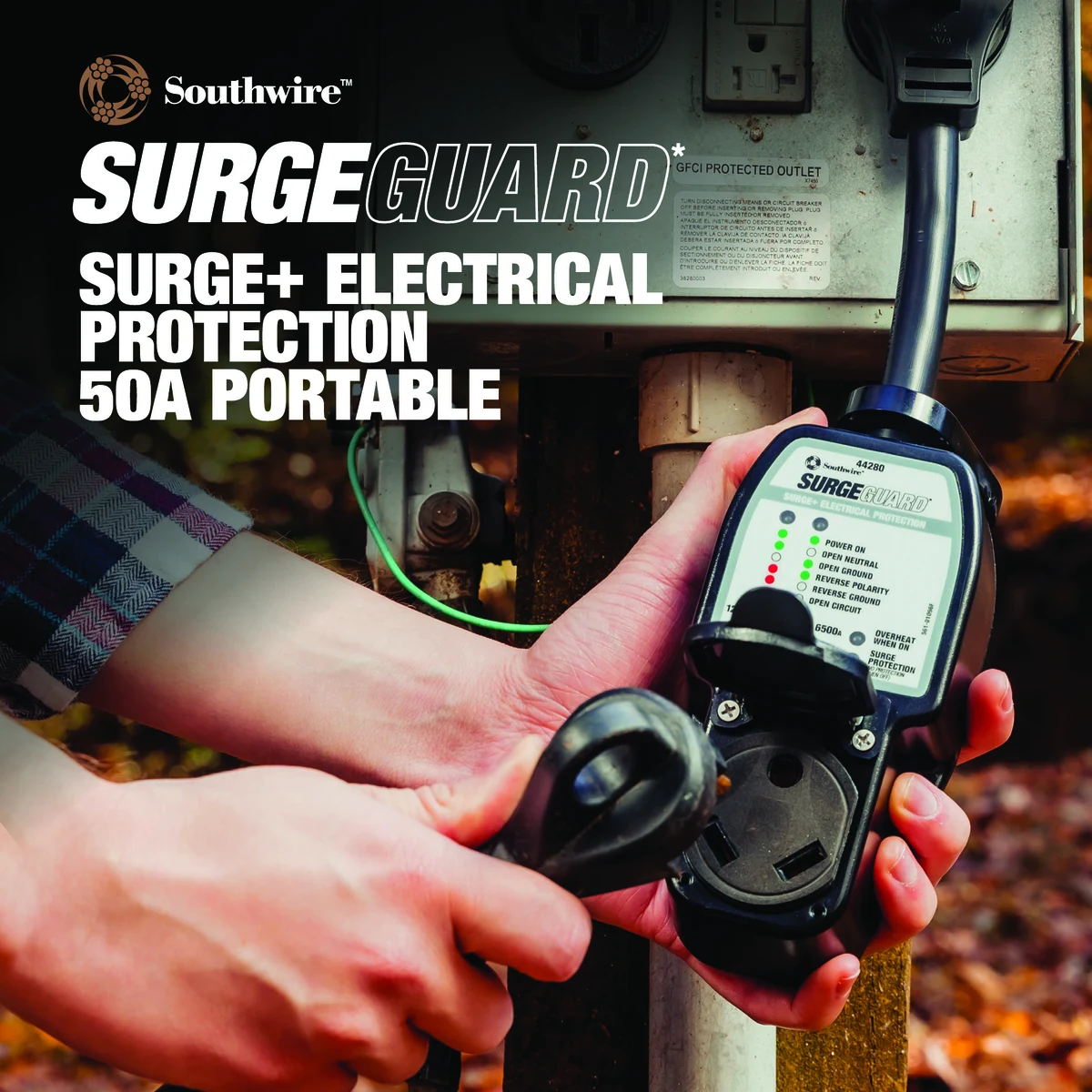

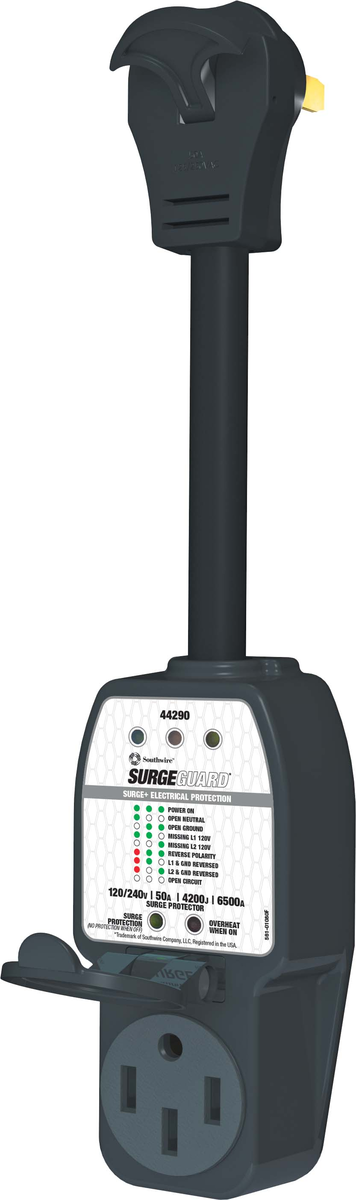

Southwire Surge Guard 44290 is a portable 120/240-volt, 50 amp RV surge protector with enhanced campground power diagnostics. It provides 4,200 joules of surge protection and uses an easy-to-read LED fault chart to help identify wiring and power conditions before you rely on a campground pedestal.
This 50 Amp RV Surge Protector is designed for motorhomes, fifth wheels, travel trailers, and other RVs equipped with a standard four-prong, 50-amp shore-power connection. It is portable, weather resistant, and requires no permanent installation.

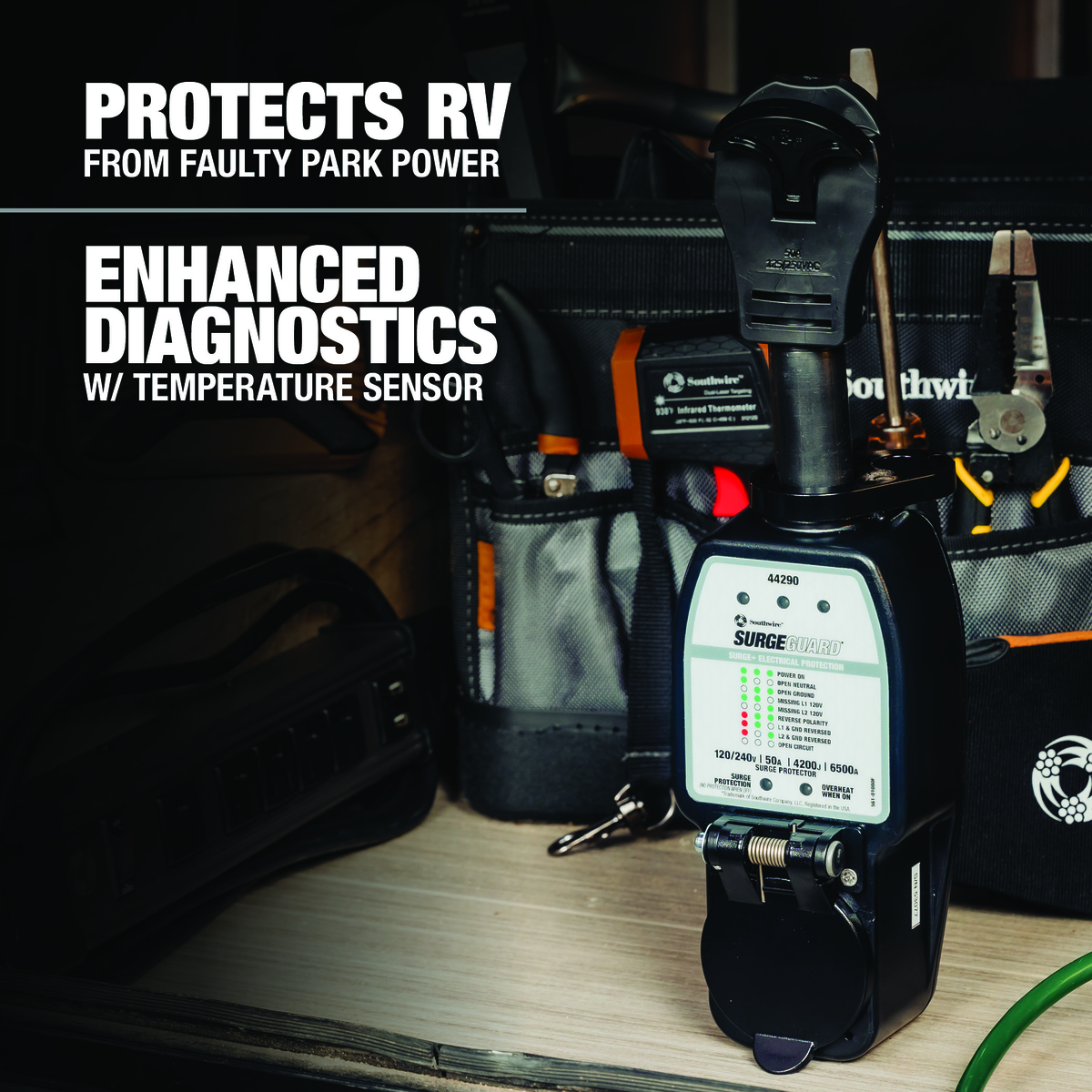

Southwire Surge Guard 44290 Enhanced Diagnostics
The Southwire Surge Guard 44290 analyzes campground pedestal power and indicates several conditions that may affect a safe RV connection:
- Open neutral
- Open ground
- Reverse polarity
- Open circuit or no power
- Missing voltage on leg 1
- Missing voltage on leg 2
- Surge-protection status
- Overheating at the plug or receptacle
The LED fault chart provides a clear visual reference, helping you identify the detected condition without having to interpret a complicated digital display.
Key Features of the Southwire Surge Guard 44290
- 120/240-volt, 50-amp RV electrical service
- 4,200 joules of surge protection
- Enhanced campground pedestal diagnostics
- Easy-to-read LED fault chart
- Missing leg 1 and leg 2 voltage indication
- Overheating plug and receptacle indication
- Increased receptacle brass thickness to help reduce heat

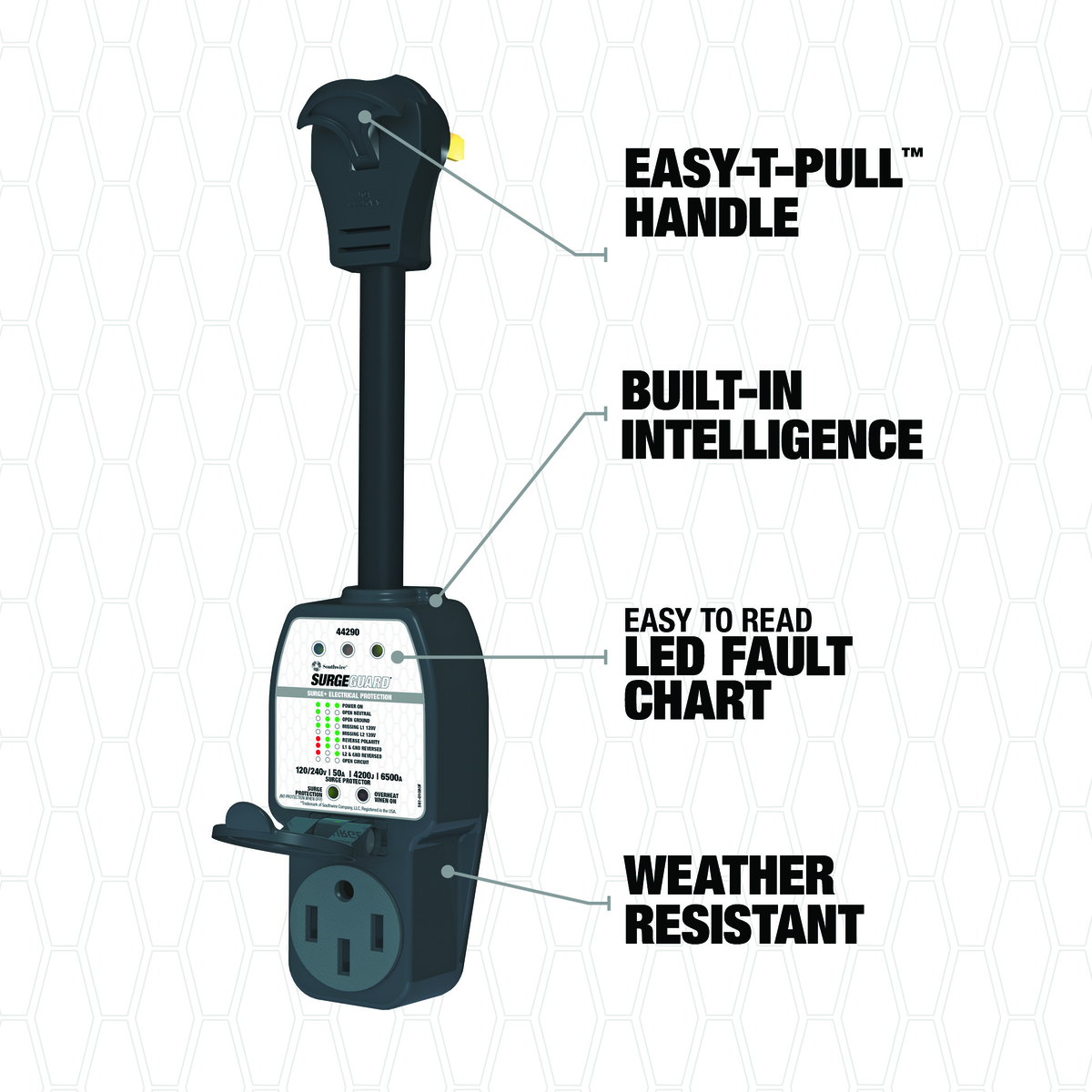

- Easy-T-Pull™ handle with an integrated receptacle
- Anti-theft lock ring built into the cord
- Weather-resistant portable construction
- No permanent installation required

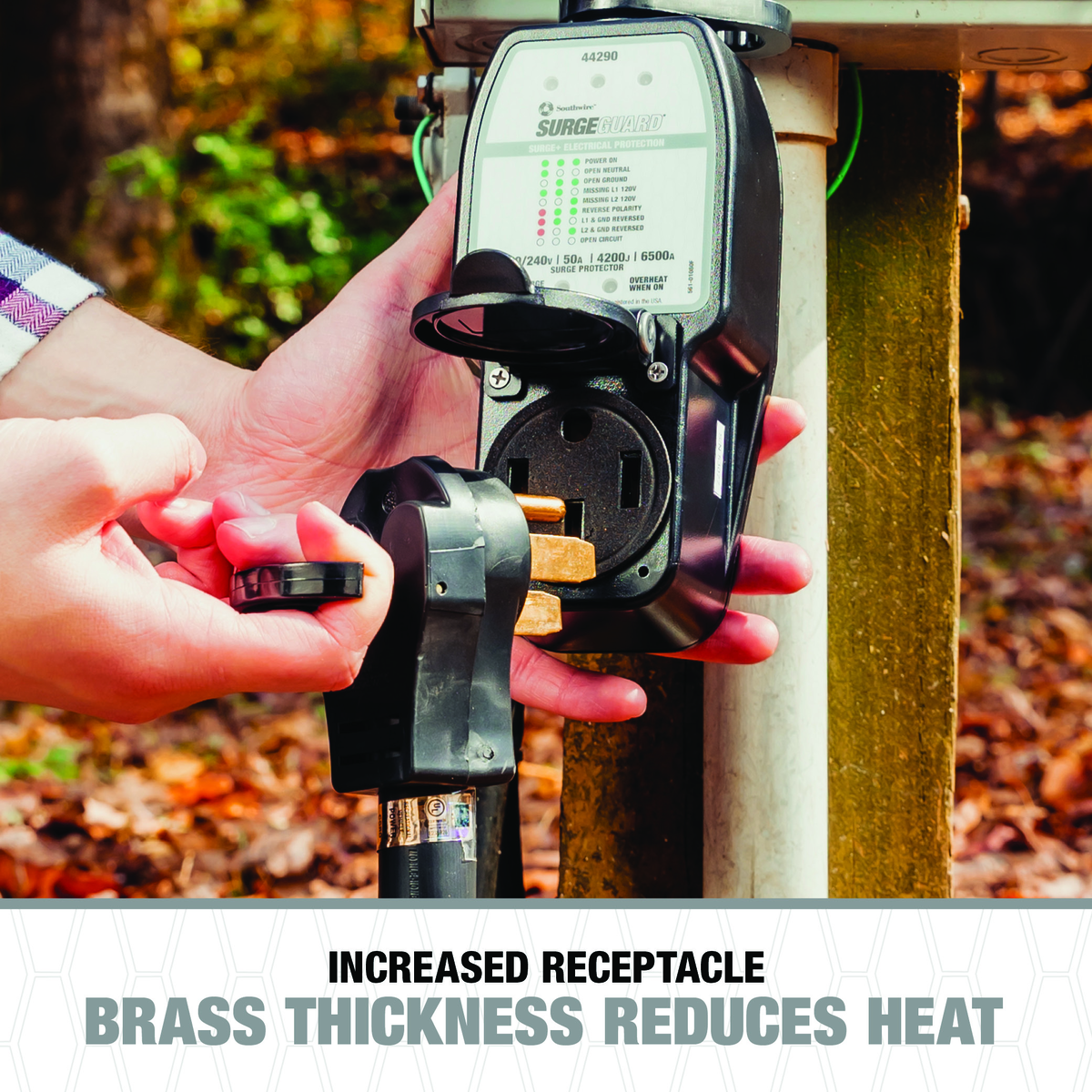

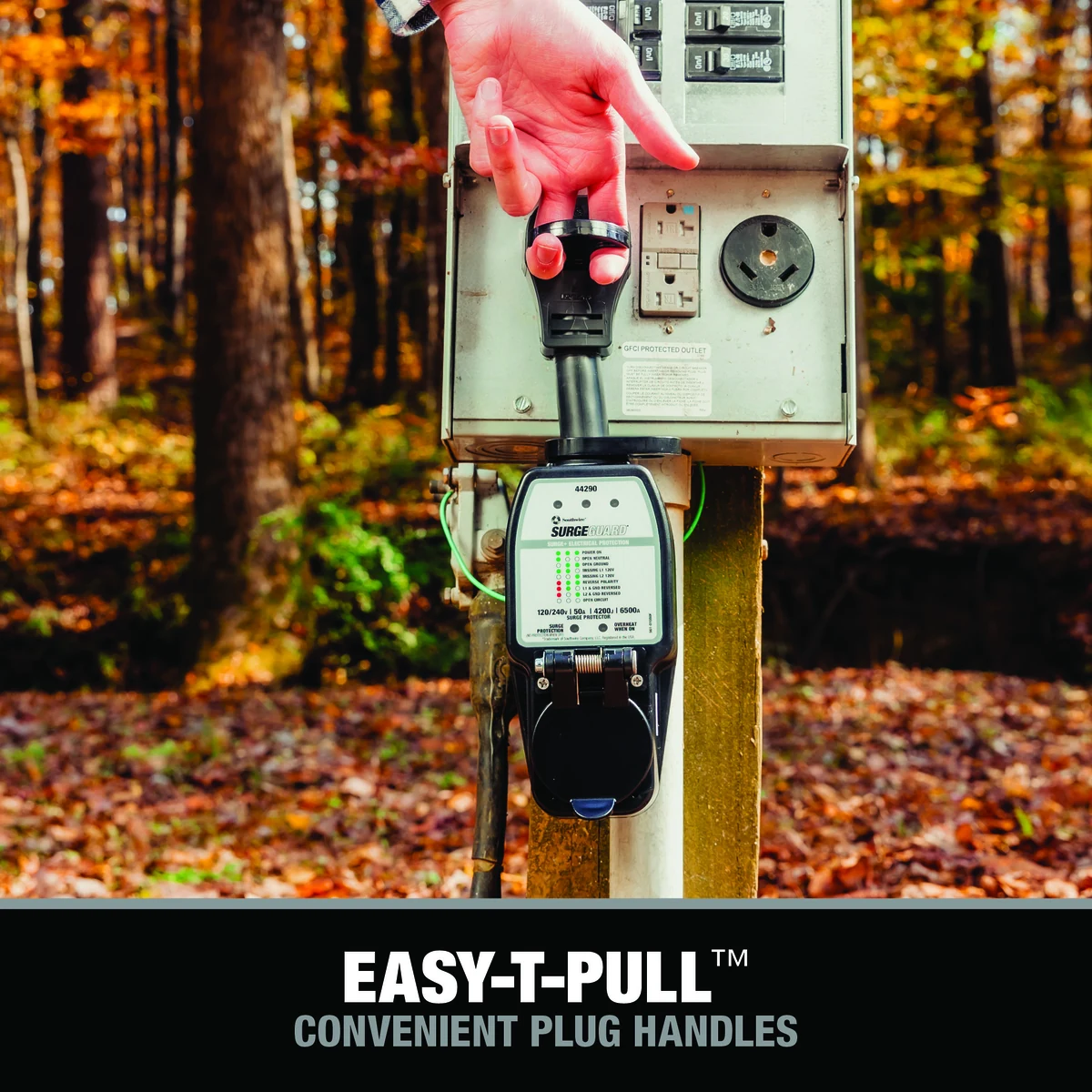

The Easy-T-Pull™ handle makes the 50 amp RV surge protector easier to connect and disconnect. The integrated receptacle and increased brass thickness are designed to provide a durable connection while helping reduce heat at the receptacle.
Is the Southwire Surge Guard 44290 Right for Your RV?
The Southwire Surge Guard 44290 is designed for RVs that use a standard 50-amp shore-power connection. A typical 50-amp RV plug has four prongs and supplies two 120-volt legs.
This model may be the right choice when:
- Your RV uses 50-amp shore power
- You want a portable protector instead of a hardwired installation
- You want more diagnostic information than a basic surge protector provides
- You want indication when voltage is missing from either 50-amp leg
- You want surge-protection status indication
- You want plug and receptacle overheating indication
- You frequently connect to unfamiliar campground power pedestals
Who Should Consider a Different Surge Protector?
The Southwire Surge Guard 44290 is not intended for an RV that uses a 30-amp, three-prong shore-power connection. A 30-amp RV requires a correctly matched 30-amp protector such as the Southwire Surge Guard 44280.
This model is also not a full-protection electrical management system. The manufacturer brochure does not list automatic high- or low-voltage shutdown, delayed power restoration, amperage display, or continuous RMS voltage monitoring as features of the 44290.
Customers who need automatic voltage protection and power disconnection should compare Southwire’s full-protection portable or hardwired models rather than relying on the 44290 for functions it does not provide.
Southwire 44290 Compared with the 44270
The Southwire Surge Guard 44270 is a more basic 50 amp RV surge protector. It provides 4,200 joules of surge protection and checks open ground, open neutral, and correct polarity.
The Southwire Surge Guard 44290 adds enhanced diagnostic indications, including reverse polarity, open circuit or no power, missing voltage on either 50-amp leg, surge-protection status, and overheating at the plug or receptacle.
Choose the 44270 when basic pedestal wiring diagnostics are sufficient. Choose the 44290 when you want more detailed information about the incoming campground connection.
Southwire 44290 Compared with the 44390
The 44290 and 44390 are both 120/240-volt, 50-amp models with 4,200 joules of surge protection and the same enhanced diagnostic conditions.
The manufacturer brochure identifies the 44390 as the UL/CUL-listed model with a fully enclosed receptacle cover. Customers who specifically require those features should consider the 44390 instead of the 44290.
Southwire Surge Guard 44290 Size and Security
The Southwire Surge Guard 44290 measures approximately 4.25 inches wide, 17.5 inches long, and 4.25 inches deep.
An anti-theft lock ring is included on the cord. Southwire states that the separate Surge Guard Lock Hasp model 34590 is not compatible with the 44290, so customers should use the unit’s integrated lock-ring design rather than purchasing that hasp for this model.
Common Questions About the Southwire Surge Guard 44290
Does the 44290 work with every RV?
No. It is designed for an RV with a 120/240-volt, 50-amp shore-power connection. A 30-amp RV requires a properly matched 30-amp model.
Does it indicate faulty campground wiring?
Yes. It indicates open neutral, open ground, reverse polarity, and an open-circuit or no-power condition.
Can it detect a missing 50-amp power leg?
Yes. The enhanced diagnostics indicate missing voltage on leg 1 or leg 2.
Does it indicate whether surge protection is still available?
Yes. Surge-protection status is one of the conditions listed for the Southwire Surge Guard 44290.
Does it indicate overheating?
Yes. The enhanced diagnostics include an indication for overheating at the plug or receptacle.
Does it automatically shut off power during low or high voltage?
The manufacturer brochure does not list automatic low- or high-voltage shutdown as a feature of the 44290. Customers needing automatic voltage protection should compare Southwire’s full-protection models.
