Go Power GP-RVC-MPPT-30 30 Amp MPPT Solar Controller with RV-C
Not Sure Which RV Solar Charge Controller Fits Your System? We’ll Help You Choose.
✔ Confirm your RV’s battery-bank voltage and battery type
✔ Compare PWM, MPPT, single-bank, dual-bank, and RV-C options
✔ Match the controller to your solar-array wattage and charging needs
Fast response. No obligation. We’ll help you choose the right solar charge controller for your RV and battery system.
Not Sure Which RV Solar Charge Controller Fits Your System? We’ll Help You Choose.
✔ Confirm your RV’s battery-bank voltage and battery type
✔ Compare PWM, MPPT, single-bank, dual-bank, and RV-C options
✔ Match the controller to your solar-array wattage and charging needs
Fast response. No obligation. We’ll help you choose the right solar charge controller for your RV and battery system.

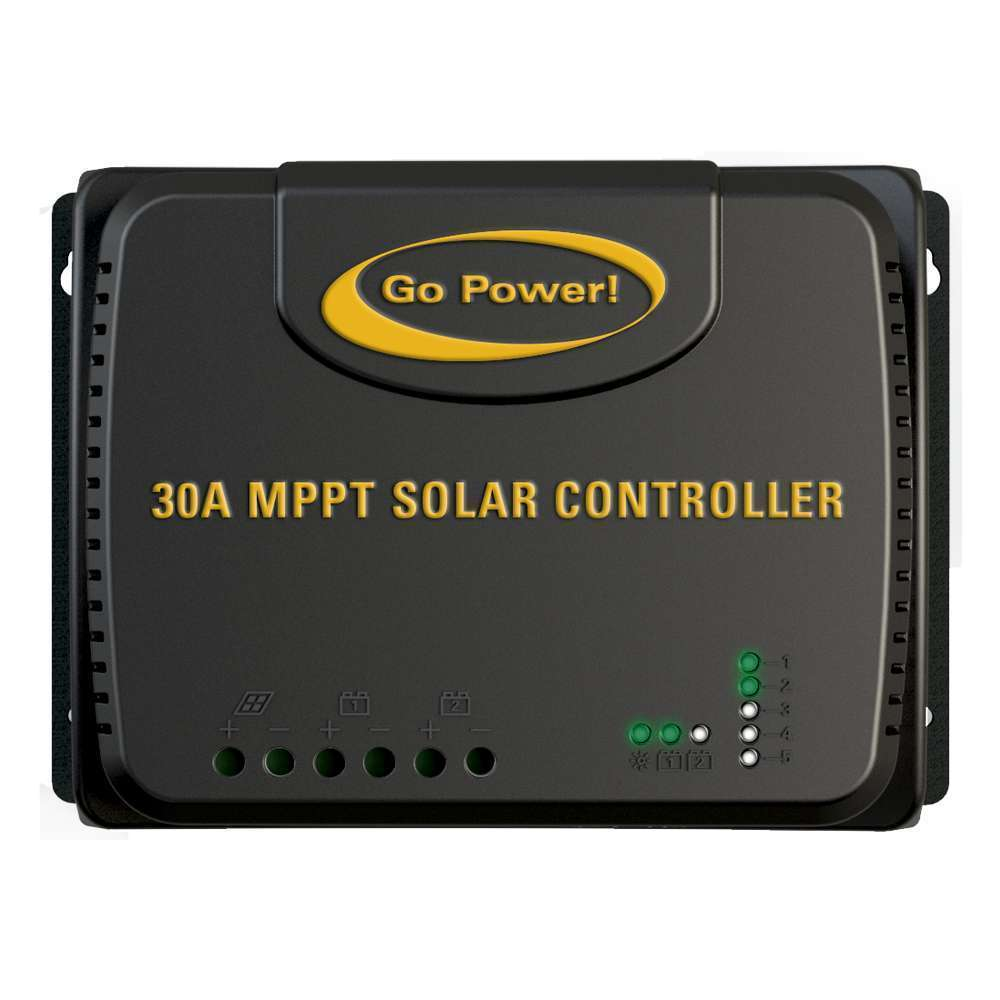

The Go Power GP-RVC-MPPT-30 solar controller is a 30 amp MPPT controller for 12- or 24-volt RV solar systems. It supports RV-C communication, lithium and lead-acid battery types, solar input up to 600 watts at 12 volts or 1,200 watts at 24 volts, and stackable expansion for larger arrays. A compatible RV-C display or GP-RVC-R remote is required for monitoring and setup. Request a quote to confirm fit for your RV solar system.
Description
What Problem Does the Go Power GP-RVC-MPPT-30 Solar Controller Solve?
The Go Power GP-RVC-MPPT-30 solar controller helps an RV solar system capture and use more available panel power than a basic PWM controller. Its Maximum Power Point Tracking technology operates at up to 98% efficiency and is designed to optimize charging as sunlight and panel conditions change.
It also integrates with compatible RV-C communication systems, making it a strong fit for smart-RV installations that need centralized monitoring and control.
Who Is the Go Power GP-RVC-MPPT-30 For?
This controller is a strong fit for RV owners building or upgrading a 12- or 24-volt solar system who want MPPT charging efficiency and RV-C integration.
It is especially useful for systems with series-wired solar panels, lithium or lead-acid batteries, and installations that may need additional controllers later as the solar array grows. A compatible RV-C display or GP-RVC-R remote is required for monitoring and setup.
Who Should Not Buy the Go Power GP-RVC-MPPT-30?
This controller is not the best choice for an RV owner who wants a simple stand-alone controller with a built-in display. Monitoring and setup require either a compatible RV-C display or the separate Go Power GP-RVC-R remote.
It may also be unnecessary for a small, basic solar system that does not need MPPT charging, series-wired panels, RV-C integration, or future controller expansion. Confirm system voltage, solar-array size, battery type, panel wiring, and display compatibility before choosing this model.
Key Features of the Go Power GP-RVC-MPPT-30 Solar Controller
- 30-amp MPPT charging for 12- or 24-volt systems
- Maximum PV input voltage below 100 volts
- Supports up to 600 watts at 12 volts or 1,200 watts at 24 volts
- Compatible with GEL, AGM, flooded, LiFePO4, and custom battery profiles
- Integrates with compatible RV-C onboard communication systems
- Stackable design allows additional controllers to expand the solar array
- RS485 and CAN bus communication
- Five-year manufacturer warranty
- Requires the GP-RVC-R remote unless the RV already has a compatible RV-C display

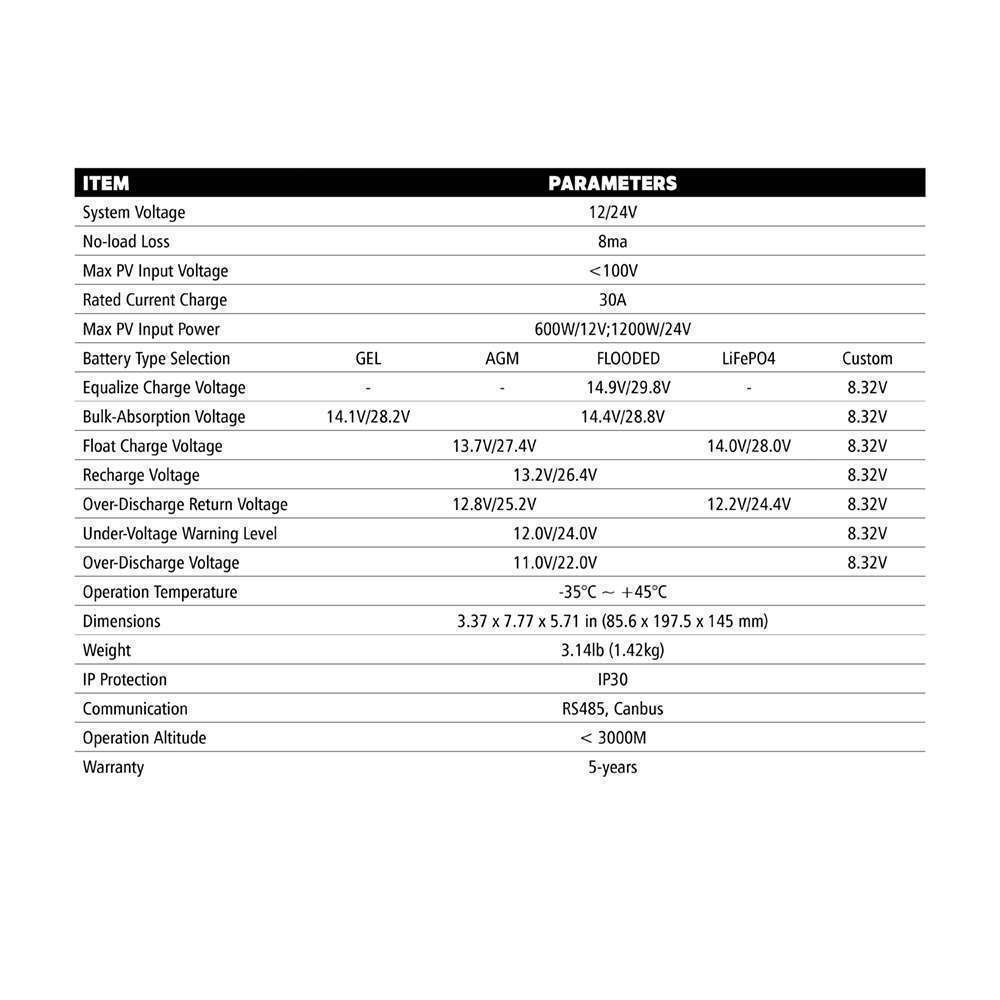

Go Power GP-RVC-MPPT-30 Specifications
- System voltage: 12 or 24 volts
- Rated charging current: 30 amps
- Maximum PV input voltage: Less than 100 volts
- Maximum PV input power: 600 watts at 12 volts or 1,200 watts at 24 volts
- Battery profiles: GEL, AGM, flooded, LiFePO4, and custom
- Operating temperature: -35°C to 45°C
- Dimensions: 3.37 × 7.77 × 5.71 inches
- Weight: 3.14 pounds
- Ingress protection rating: IP30
- Communication: RS485 and CAN bus
- Warranty: Five years
How Does the GP-RVC-MPPT-30 Compare to Go Power PWM Controllers?
The GP-RVC-MPPT-30 is the better choice for RV owners who need MPPT charging, 12- or 24-volt system support, higher-voltage series-wired solar panels, RV-C integration, or future expansion with additional controllers.
The GP-PWM-30-UL and GP-SB-PWM-30BT are simpler PWM options for basic 12-volt systems and include more direct local monitoring features. Choosing the wrong controller can limit charging performance, create display-compatibility problems, or result in a controller that does not match the solar-array voltage and battery setup.
View more RV Solar Charge Controllers, or review the manufacturer’s GP-RVC-MPPT-30 product information.
What Should You Confirm Before Choosing This Controller?
Before requesting this controller, confirm whether the RV uses a 12-volt or 24-volt battery system and calculate the total wattage and voltage of the connected solar array. The panel configuration must remain within the controller’s supported input limits.
Also confirm the battery chemistry and charging profile. The GP-RVC-MPPT-30 supports GEL, AGM, flooded, LiFePO4, and custom charging profiles, but the correct profile must be selected for the installed battery bank.
This model does not include a built-in monitoring display. Verify that the RV has a compatible RV-C display or plan to use the separate Go Power GP-RVC-R remote for setup and monitoring.
Finally, consider whether future solar expansion is planned. Its stackable design can support larger systems, but additional controllers, wiring, communication connections, and system planning may be required. Request help before purchasing when the battery voltage, panel wiring, RV-C compatibility, or expansion requirements are uncertain.
