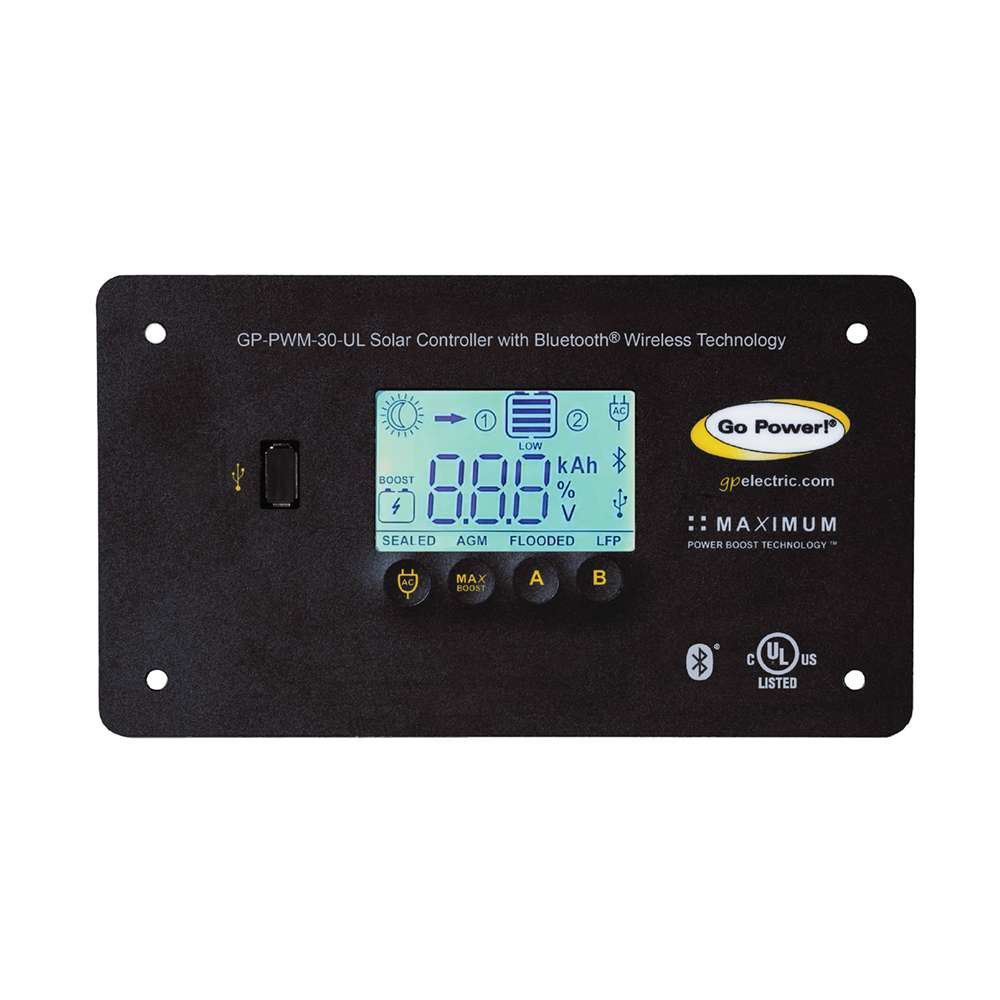

The Go Power GP-PWM-30-UL solar controller is a 30 amp, 12-volt PWM controller designed to charge one or two battery banks. It includes Bluetooth monitoring through the Go Power! Connect app, a digital display, a built-in USB charging port, four-stage charging, and support for solar arrays up to 600 watts. Request a quote to confirm fit for your RV solar system.
Description
The Go Power GP-PWM-30-UL solar controller regulates power from an RV’s solar panels before it reaches the battery banks. It helps protect batteries from overcharging while providing a clear digital view of charging current, battery voltage, and battery capacity.
What Problem Does the Go Power GP-PWM-30-UL Solar Controller Solve?
Solar panels continue producing power whenever sunlight is available. Without a charge controller, that power is not safely regulated before reaching the batteries.
The Go Power GP-PWM-30-UL limits and manages current from the solar array using pulse width modulation technology. Its four-stage charging system helps charge and maintain compatible batteries while reducing the risk of overcharging.
Unlike a single-bank controller, this model can charge one or two battery banks. That makes it useful for RV installations that need to maintain a primary house battery bank and a separate secondary battery bank.
Who Is the Go Power GP-PWM-30-UL For?
-
- Use a 12-volt solar and battery system
- Need up to 30 amps of continuous solar current capacity
- Have a solar array up to 600 watts
- Need to charge one or two battery banks
- Want Bluetooth monitoring from a phone or tablet
- Use sealed/gel, AGM, flooded, or LiFePO4 batteries
- Want a flush-mounted controller with a digital display
- Need a built-in USB charging port
The Go Power! Connect app allows you to choose the battery type and charging profile, activate Maximum Power Boost mode, control select compatible Go Power ISW inverters, and review battery voltage, PV charging current, and battery state of charge.
Who Should Not Buy the Go Power GP-PWM-30-UL?
This controller may not be the right choice if:
- Your RV uses a 24-volt battery system
- Your solar array exceeds 600 watts
- Your system requires more than 30 amps of continuous solar current capacity
- You specifically need an MPPT controller
- Your solar installation requires higher panel-input voltage
- You need RV-C network integration
- You only need a smaller single-bank controller and do not require the additional dual-bank capability
Choosing the wrong controller can limit solar charging, create compatibility problems, or leave the system undersized. Confirm the battery-bank voltage, battery chemistry, solar-array size, number of battery banks, and communication requirements before requesting a quote.
Key Features of the Go Power GP-PWM-30-UL Solar Controller
- Dual-bank capable for charging one or two battery banks
- Bluetooth monitoring through the Go Power! Connect app
- 30-amp continuous solar-current rating
- Designed for 12-volt systems
- Supports solar arrays up to 600 watts
- Maximum solar-panel input voltage of 28 volts
- Pulse width modulation charging technology
- Four-stage charging with an optional equalize setting
- Sealed/gel, AGM, flooded, and LiFePO4 battery profiles
- LCD display for solar charge current, battery voltage, and battery capacity
- Built-in USB charging port
- Maximum Power Boost Technology
- Remote on/off control for select compatible Go Power ISW inverters
- Protection against battery reverse polarity, solar-array reverse polarity, overtemperature, and overcurrent
- Five-year manufacturer warranty

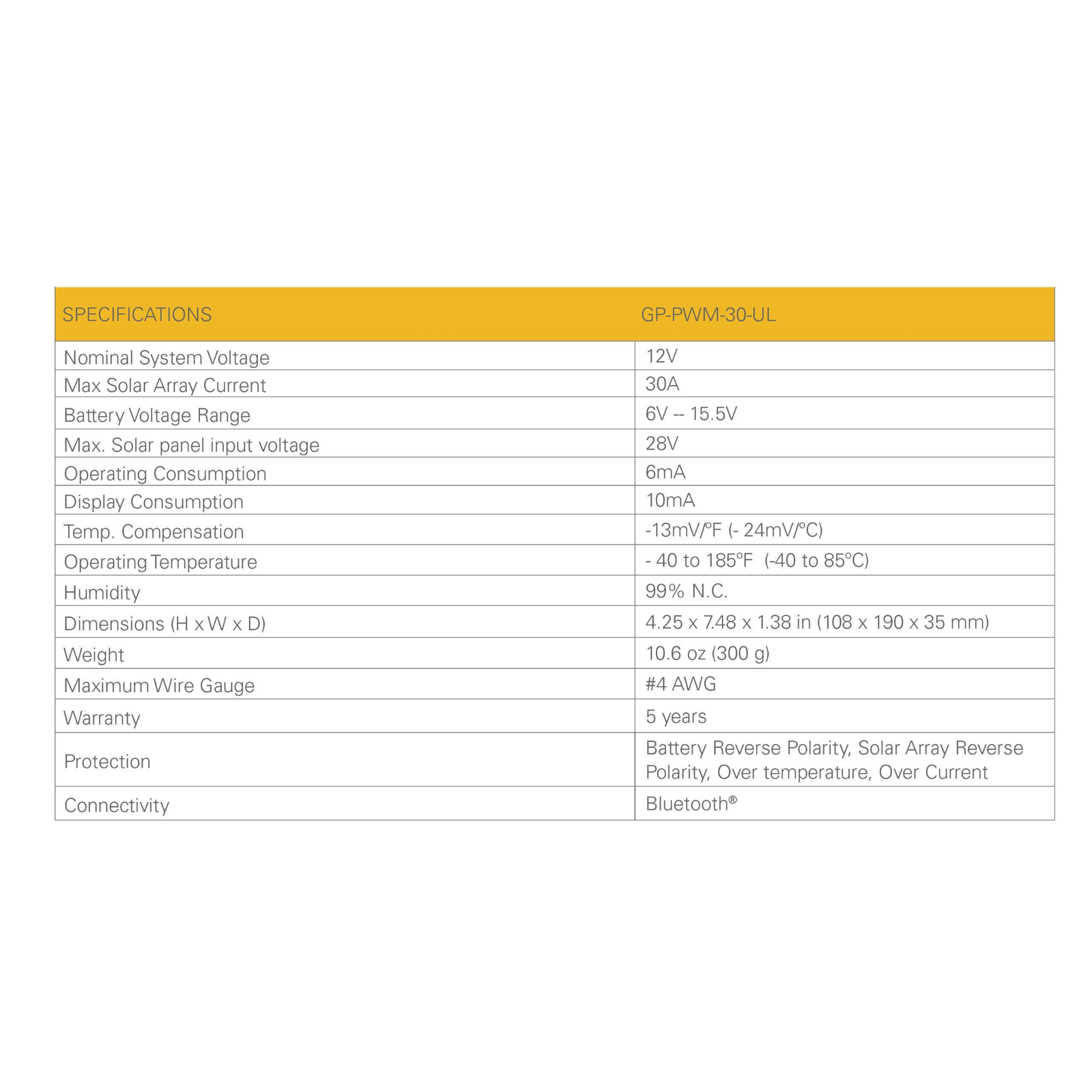

Go Power GP-PWM-30-UL Specifications
- Nominal system voltage: 12V
- Maximum solar-array current: 30A
- Battery-voltage range: 6V to 15.5V
- Maximum solar-panel input voltage: 28V
- Maximum supported solar array: 600 watts
- Operating consumption: 6mA
- Display consumption: 10mA
- Temperature compensation: -13mV/°F / -24mV/°C
- Operating temperature: -40°F to 185°F / -40°C to 85°C
- Humidity rating: 99% non-condensing

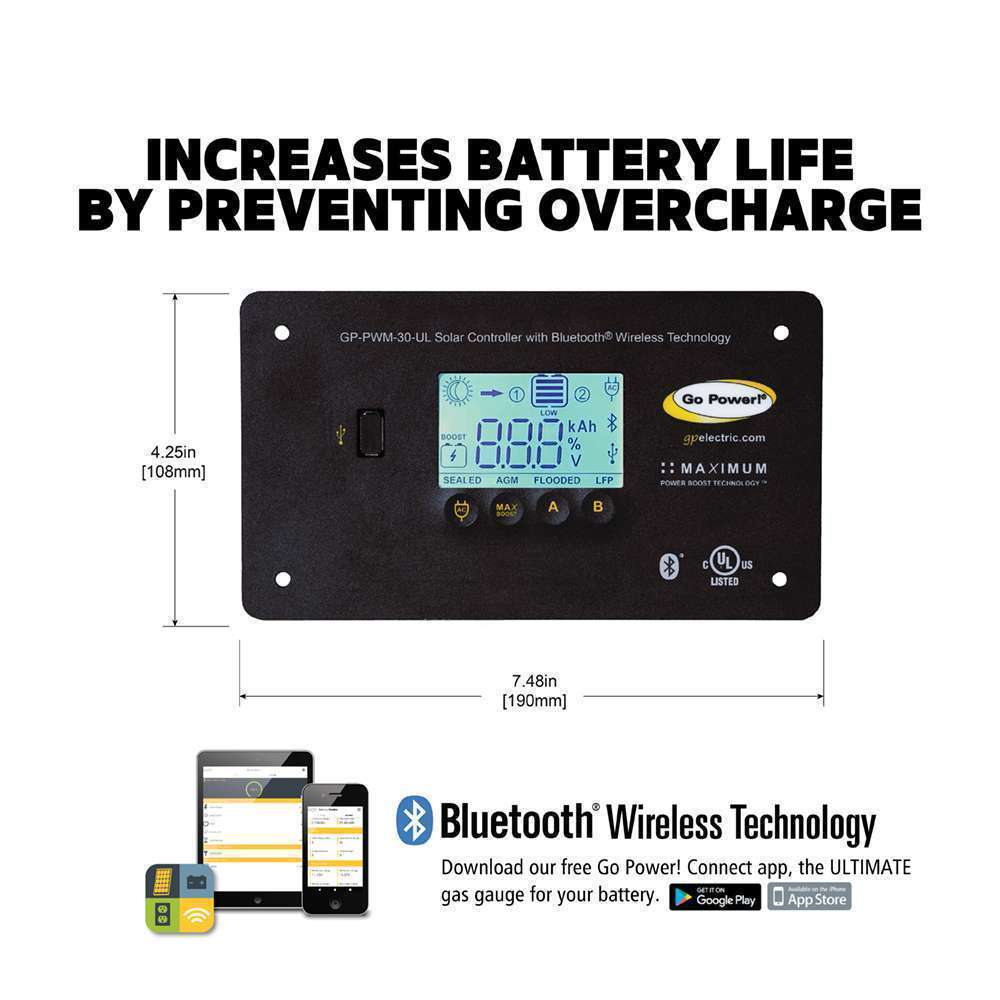

- Dimensions: 4.25 × 7.48 × 1.38 inches
- Metric dimensions: 108 × 190 × 35 mm
- Weight: 10.6 ounces / 300 grams
- Maximum wire gauge: #4 AWG
- Warranty: 5 years
How Does the GP-PWM-30-UL Compare to Other Go Power Controllers?
- Choose the GP-PWM-30-UL when your RV has a 12-volt system, needs up to 30 amps of charging capacity, and must charge one or two battery banks.
- Choose the GP-SB-PWM-30BT when the installation uses a single battery bank and does not need dual-bank charging.
- Choose a Go Power MPPT controller when the installation requires MPPT charging, higher panel-input voltage, or a larger and more advanced solar configuration.
- Choose an RV-C-compatible controller only when the RV uses a compatible RV-C network and system integration is required.
The Go Power GP-PWM-30-UL solar controller should be matched to the battery-bank voltage, battery chemistry, solar-array wattage, number of battery banks, and communication requirements. Browse our RV Solar Charge Controllers or request help before purchasing when any of these details are uncertain.
View the official Go Power GP-PWM-30-UL product information.
